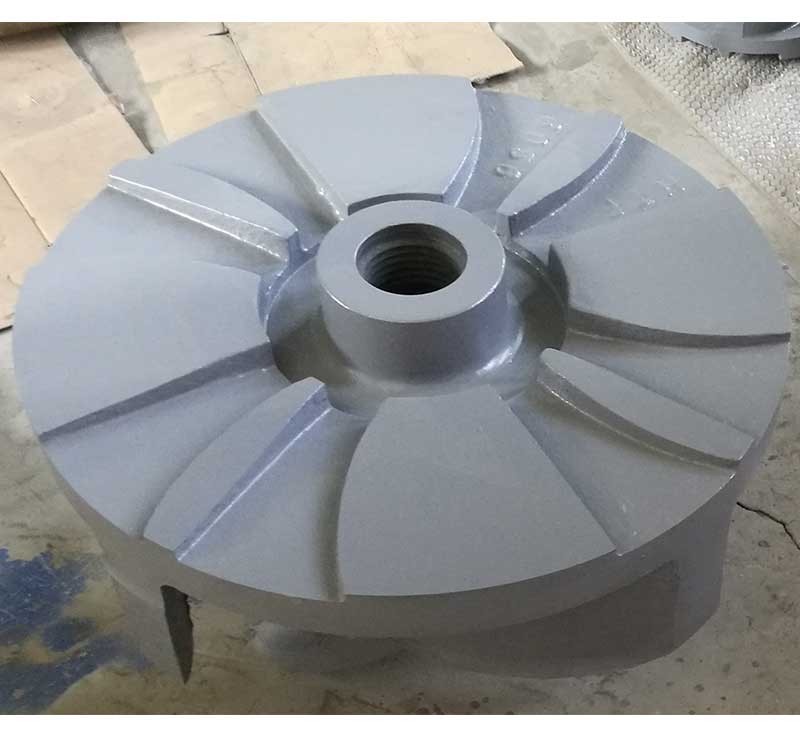

Cast Iron Impeller

Description:

Slurry pump impeller

Material:

High Chrome cast iron ASTM A532M KMTBCr26(A05)

Weight:

78kgs

Application:

Pump & Valves/Waste Water Petroleum/Chemical/Mining Industry

ZEN industrial supply

Keywords:

Liner/Pump casing/Slurry pump/Mud pump/Sewage pump/Submersible pump/Desulfurate process pump/Sand casting/

ZEN Slurry pump Impeller Process:

Resin Sand Casting +Machining+Painting

Heat Treatment:

Quenched and Tempered

Machining :

CNC Vertical lathe+Boring Machine

Procedures:

1. Incoming material inspection 2.Charge mixture 3.Moulding 4.Melting&Pouring 5.Shot blasting&grinding 6.Painting 7.Visual test 8.Machining 9.Process inspection 10.Cleaning 11.Leakage test 12.FQC 13.Packing&stocking 14.Pre-shipment inspection 15.Delivery

Tolerance:

+/-0.05mm（ or according to the customers drawing indicated）

Inspection:

MT/UT/RT/100% Visual+100%gauge/CMM

Standard:

ASTM. AISI. DIN. BS. JIS. NF. AS.

Certification:

ISO9001/TS16949/ISO14001

Drawing:

Provide by customer, or design according as the sample,in the format of Pro/E, Auto-CAD, SOLIDWORK, CAXA, UG, CAD, CAM, CAE, STP, IGES, etc.

Foundry: ZEN YOUNG TECHNOLOGY HEBEI CO., LTD.

Mould :

Design and produced by ourselves according to provided drawings
